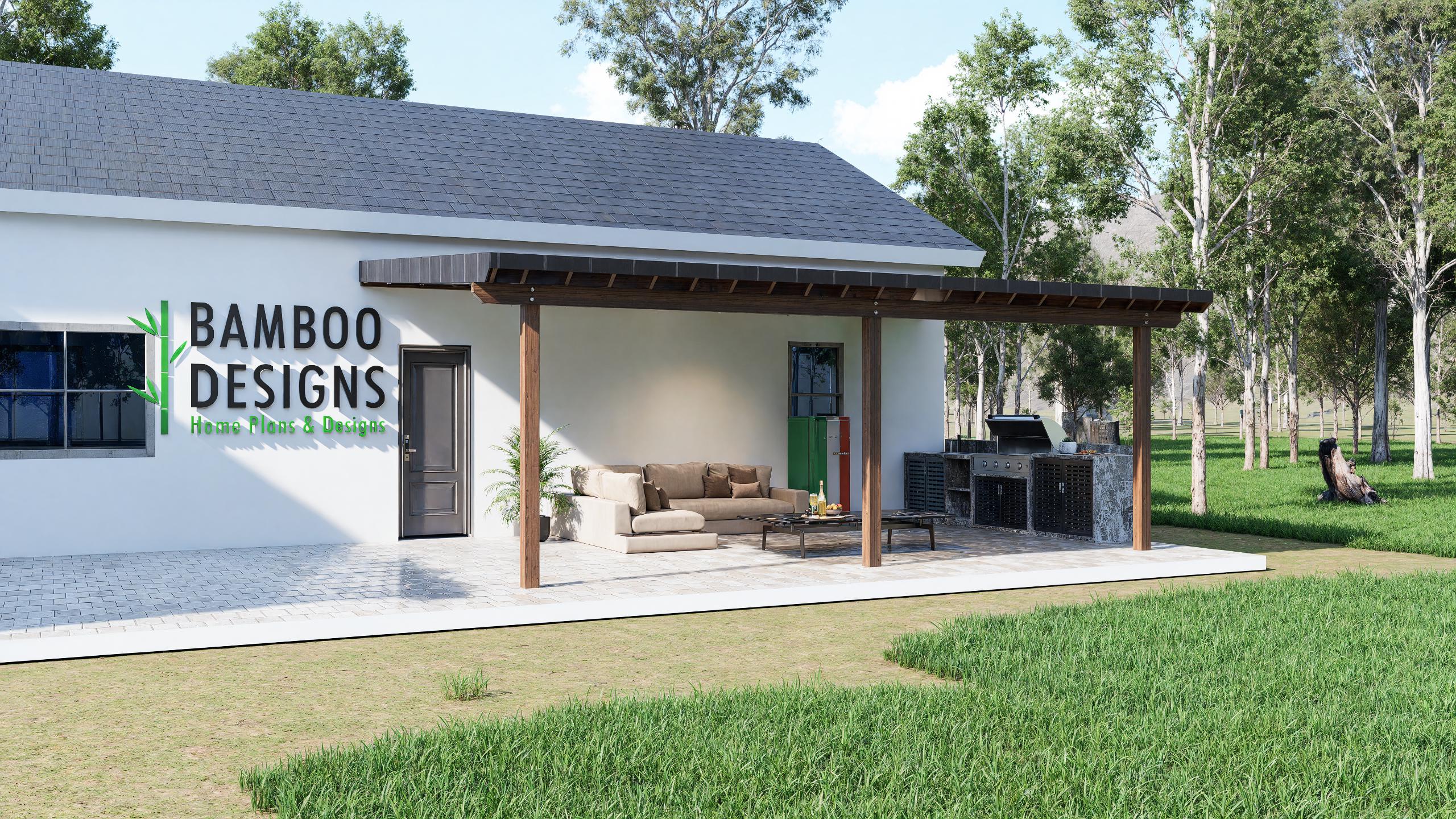

Dallas Pergola - 16x24 Lean-To Wall Pergola Plans - Modern Covered Patio Shade Structure - PDF DIY Blueprint
$41 — instant digital download (PDF + DWG plan set with material list).
What it costs to build
Based on the plan's full material list: estimated DIY material cost $1,813; typical contractor estimate $3,785 (materials + labor + overhead). See the live material cost calculator for the line-by-line breakdown.
Where Texas charm meets bold, modern coverage. The Dallas Pergola is a wide-format 16x24 wall-mounted design that transforms any patio into a true outdoor living room. Whether you're entertaining, cooking, or lounging year-round - this structure has you covered. What's Included: Full Drawing Set (PDF + DWG) Roof Plan + Framing Layout Wall-Mount Connection Details Elevations + Footing Plan Material List Included Printable on 24"x36" or letter-size sheets Designed to meet IBC/IRC 2024 Guidelines Dimensions: Size: 16 feet wide x 24 feet deep Structure Type: Lean-to (attached to wall) Posts: 3 front support posts Height: Approx. 9-10 ft (adjustable) Features: Built for large patios, BBQ stations, or full outdoor lounges Clean, modern profile with wide span rafters DIY-friendly plans or contractor-ready details Wind-rated up to 130 MPH with anchoring Please Note: Digital product only - no physical materials are shipped Not engineer-stamped - consult local pro for permit-ready adaptation Designed for planning and DIY construction Perfect For: Covered outdoor kitchens Lounge + dining zones Backyard patio upgrades Modern homes needing bold shade Delivery Format: Instant download after…
What's included
- Instant download
- PDF + DWG files
- Build plans
- Material list
Specs
| Size | 16x24 ft |
|---|---|
| Type | Pergola Plan |
| Features | Pergola |
| Format | PDF + DWG |
