Hanging Chair Pergola Frame Plans - 20ft Freestanding Swing Beam Structure - Heavy-Duty DIY PDF + DWG
$41 — instant digital download (PDF + DWG plan set with material list).
What it costs to build
Based on the plan's full material list: estimated DIY material cost $835; typical contractor estimate $1,743 (materials + labor + overhead). See the live material cost calculator for the line-by-line breakdown.

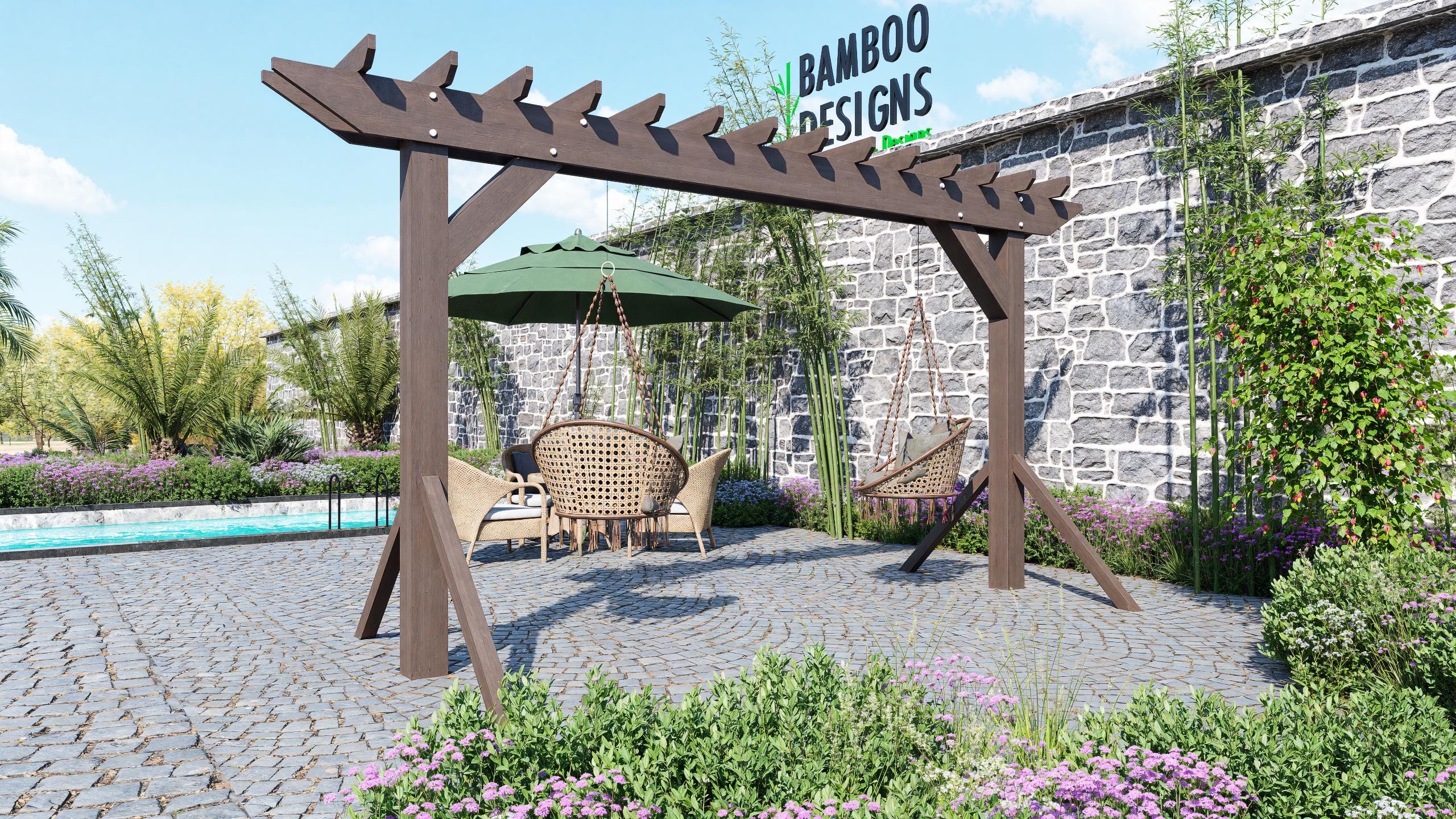

XL Hanging Chair Pergola Frame Plans - 20ft Freestanding Swing Beam Structure - Heavy-Duty DIY PDF + DWG Built for strength. Designed for calm. The XL Hanging Chair Pergola Frame spans a full 20 feet, supported by bold 8x8 posts and reinforced cross-bracing - ready to hold up to four full-size hanging chairs or swings with total confidence. Whether you're designing for your home, vacation rental, or retreat property, this structural stunner delivers both beauty and function. What's Included: Full Drawing Set (PDF + DWG) Roof Plan + Framing Layout Connection Details Elevations + Footing Plan Material List Included Printable on 24"x36" or letter-size sheets Designed to meet IBC/IRC 2024 Guidelines Dimensions: Size: 20ft Support: 2-post 8x8 (with bracing) Depth: ~6-8 ft Height: ~8.5-9 ft Features: Clean, modern profile with wide span rafters DIY-friendly plans or contractor-ready details Wind-rated up to 130 MPH with anchoring Please Note: Digital product only - no physical materials are shipped Not engineer-stamped - consult local pro for permit-ready adaptation Designed for planning and DIY construction Perfect For: Backyard chill zones Garden lounges or yoga decks Outdoor firepit…
What's included
- Instant download
- PDF + DWG files
- Build plans
- Material list
Specs
| Size | 20 ft |
|---|---|
| Type | Pergola Plan |
| Features | Pergola |
| Format | PDF + DWG |
