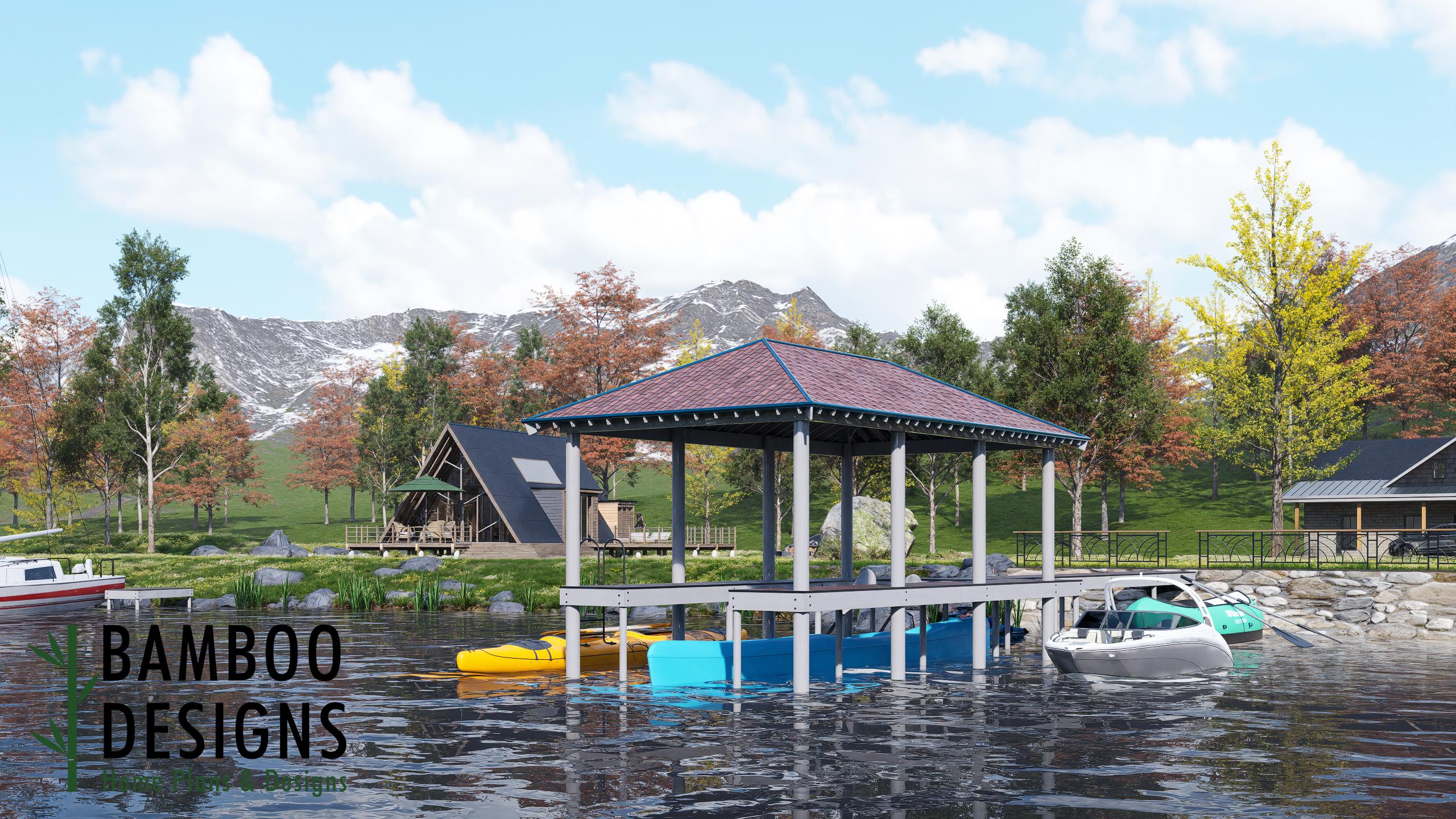

Lake Travis 16x34 Covered Dock with Boat Slip | DIY Dock Plans with Kayak Launch | Waterfront Pier with Hip Roof
$131 — instant digital download (PDF + DWG plan set with material list).
Lake Travis 16x34 Covered Dock with Boat Slip | DIY Dock Plans with Kayak Launch | Waterfront Pier with Hip Roof Design your dream waterfront retreat with our 16x34 DIY Covered Dock Plans, complete with: 7'-4" Center Slip - Perfect for kayaks, jet skis, or paddleboards Side Tie-Up for Full-Sized Boat - Accommodates up to ~24 ft vessel alongside the dock Durable Hip Roof Design - adds shade + architectural charm Kayak / Jet Ski Launch Zone - versatile side docking area Extended Walkway Pier - perfect for fishing or relaxing Engineered Wood Framing Layout - clear material callouts included Ideal for lakefront properties, riverbanks, or calm bays, this dock plan is optimized for DIYers or contractors seeking a professional layout to submit for permitting and construction. Plan Details: Total Deck Area: 16 ft x 34 ft Boat Slip Area: 10 ft x 24 ft (approx) Material suggestions included (timber frame, pilings, metal roofing) 2D Plan Set (PDF): layout, framing, post spacing, and notes Optional CAD add-on available for engineers/contractors What's Included in the PDF Plan Set (9 Sheets Total): A0.0 - Cover Sheet (notes, project info, index) A1.0 - Boat Deck & Roof Plan (top view with…
What's included
- Instant download
- PDF files
- Build plans
- Project details
Specs
| Size | 16x34 ft |
|---|---|
| Type | Boat Dock Plan |
| Features | Covered |
| Format |
