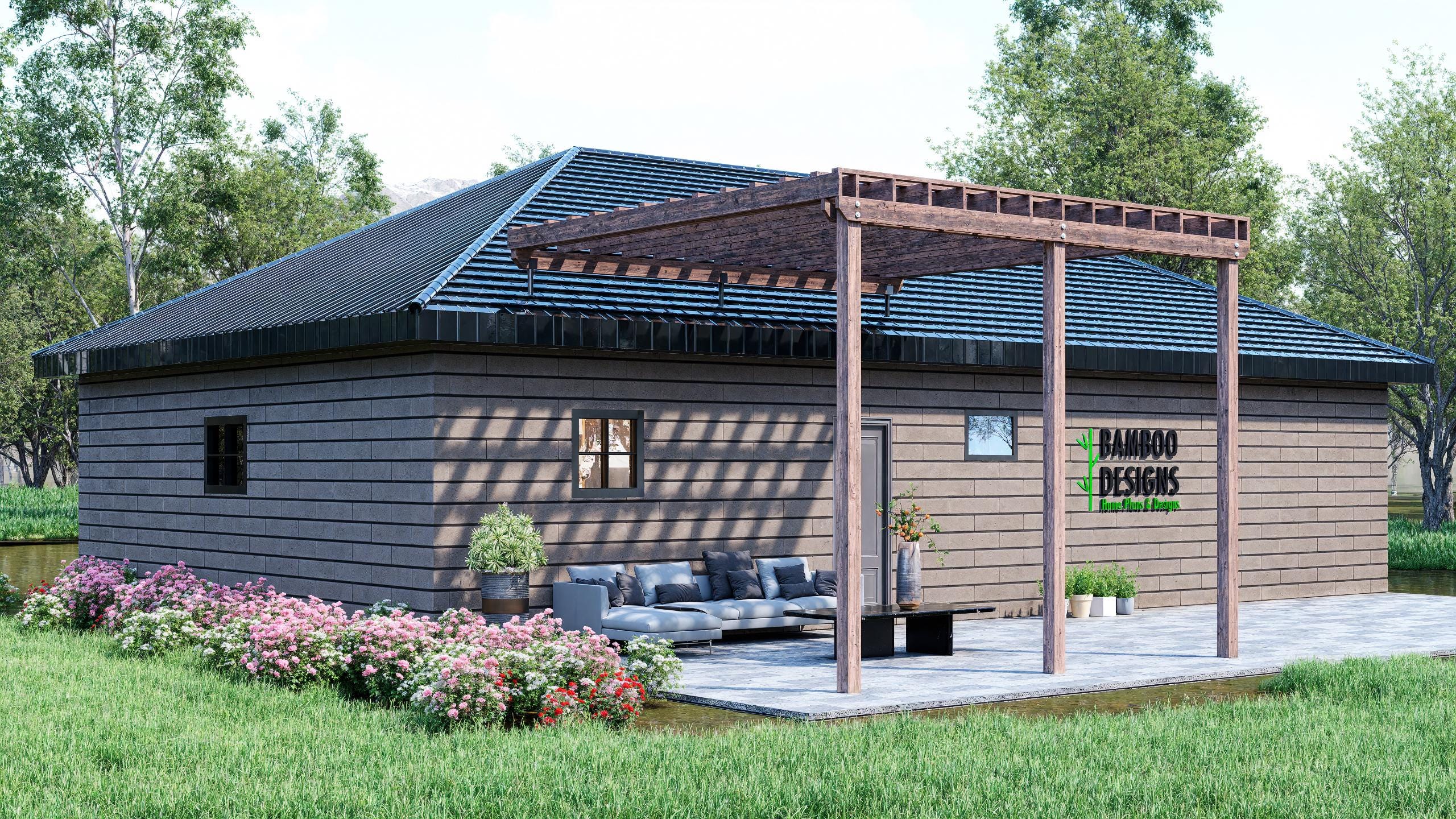

Phoenix Shade 16x16 Roof-Mounted Pergola Plan - Modern Patio Overhang PDF - DIY Wall-Attached Cover - Instant Download Blueprint
$46 — instant digital download (PDF + DWG plan set with material list).
What it costs to build
Based on the plan's full material list: estimated DIY material cost $5,306; typical contractor estimate $11,074 (materials + labor + overhead). See the live material cost calculator for the line-by-line breakdown.
Designed for the Phoenix sun and built for backyard transformation. This 16x16 roof-mounted pergola plan gives you the perfect balance of form and function - wide, open shade with a clean, modern profile that attaches directly to your home or wall. Whether you're covering an outdoor dining zone, creating a poolside lounge, or extending indoor living into your yard, this plan helps you build it right - fast, simple, and stylish. From the studio behind thousands of coast-to-coast residential designs, this plan is part of Bamboo Designs' Signature Shade Series - crafted for real homeowners, real builders, and real results. What's Included: Full Drawing Set (PDF + DWG) Roof Plan + Framing Layout Roof-Mount Connection Details Elevations + Footing Plan Material List Included Printable on 24"x36" or letter-size sheets Designed to meet IBC/IRC 2024 Guidelines Dimensions: Size: 16 ft x 16 ft Structure Type: Roof Mounted (Metal Hardware) Posts: 3 front support posts Height: Approx. 10-14 ft (adjustable) Whether you're sipping coffee in the morning or entertaining under string lights, this pergola offers comfort, character, and style-all while boosting your home's value. Features: Built for…
What's included
- Instant download
- PDF + DWG files
- Build plans
- Material list
Specs
| Size | 16x16 ft |
|---|---|
| Type | Pergola Plan |
| Features | Pergola |
| Format | PDF + DWG |
